Eye Bolts DIN 444 (Zinc Plated)

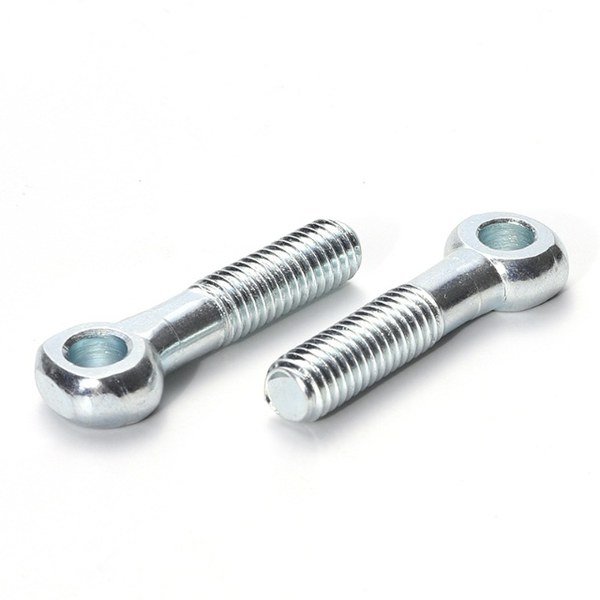

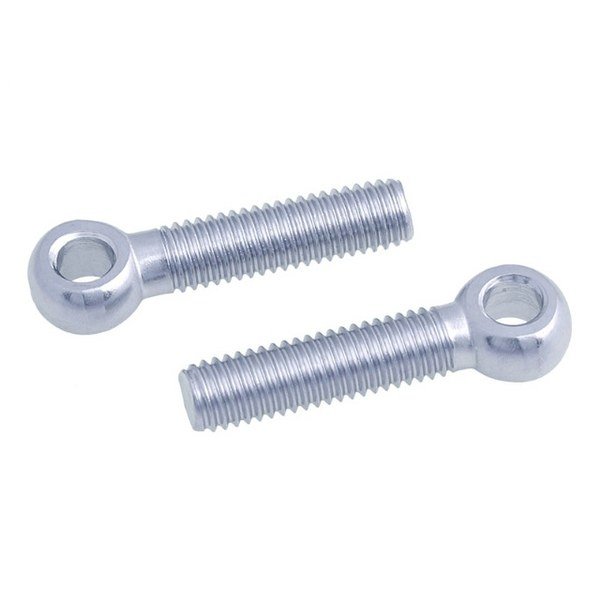

DIN 444 eye bolts have a forged round eye and a fully threaded shank, so the working length can be adjusted anywhere along the thread. The closed eye accepts a pin, shackle or hook and allows free rotation, making them ideal for tensioning systems, linkages, turnbuckle assemblies and gate hardware.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | DIN 444 |
| Type | Forged Round Eye, Fully Threaded |
| Size Range | M6 – M24 |
| Material | Carbon Steel |
| Surface Finish | Zinc Plated (Clear / Yellow) |
| Thread | Metric Coarse, full thread |
| MOQ | 500 pcs (standard), 2,000 pcs (custom) |
| Lead Time | 7-15 days (standard), 20-30 days (custom) |
Available Sizes
M6, M8, M10, M12, M14, M16, M20, M24
Applications
- Turnbuckle and tensioning assemblies
- Gate and door hardware
- Machinery linkages
- Wire rope and cable end fittings
- Agricultural equipment
- Structural tie rods
Certifications
ISO 9001:2015 certified. Material certificates (EN 10204 3.1/3.2). RoHS and REACH compliant.
Frequently Asked Questions
Can DIN 444 eye bolts be used for lifting?
No — DIN 444 eye bolts are designed for anchoring, tensioning and pulling applications, not rated lifting. For lifting duty use our DIN 580 lifting eye bolts, which are forged and marked with their rated capacity.
What sizes are available?
Available sizes range from M6 – M24. Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 500 pcs (standard), 2,000 pcs (custom). Lead time is 7-15 days (standard), 20-30 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
