Shackles (Bow & Dee, Screw Pin)

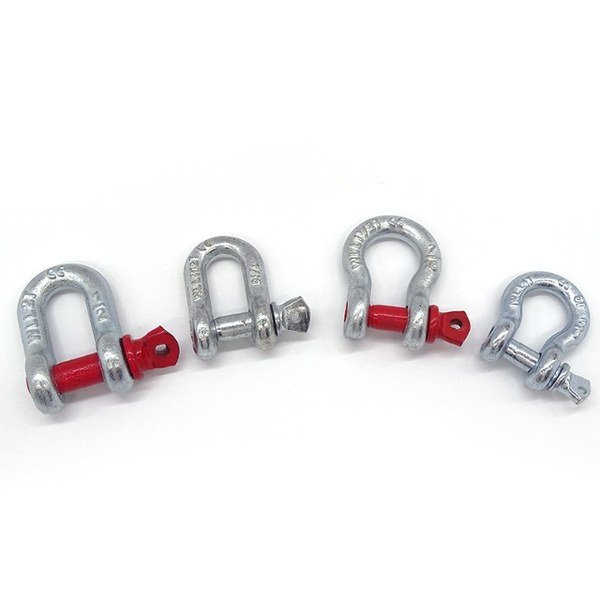

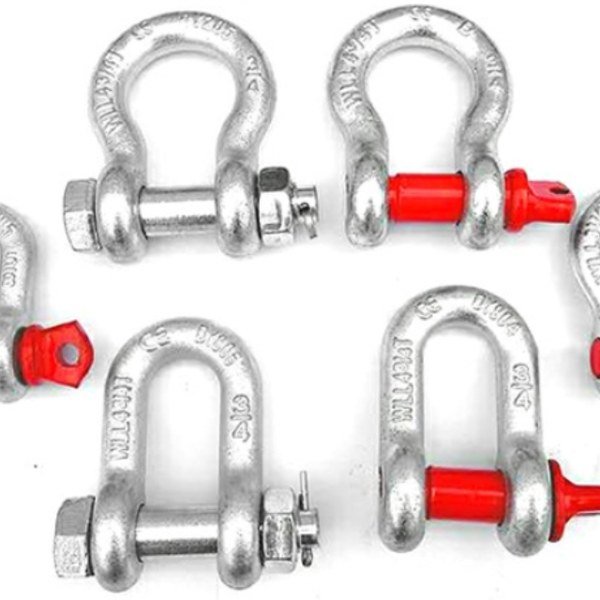

Shackles are the standard connector for lifting, rigging and towing systems, joining chain, wire rope slings and web slings to loads and anchor points. Bow (omega) shackles give a wider opening for multi-leg slings, while dee (D) shackles suit single-leg, straight-line pulling. Every shackle we supply is stamped with its working load limit.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | US Federal Specification RR-C-271, EN 13889 |
| Type | Bow Shackle (Omega) / Dee Shackle (D) |
| Pin Type | Screw Pin / Safety Pin (round pin with cotter) |
| Working Load Limit | 0.5 t – 25 t |
| Size Range | 5/16″ – 1-1/2″ (8mm – 38mm) |
| Material | Carbon Steel (forged), Stainless Steel SS304 / SS316 |
| Surface Finish | Zinc Plated, Hot Dip Galvanized, Stainless Steel |
| Marking | WLL, size and grade stamped on body |
| MOQ | 500 pcs (standard), 2,000 pcs (custom) |
| Lead Time | 7-15 days (standard), 20-30 days (custom) |
Available Sizes
5/16″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1-1/4″ and metric M8 – M36
Applications
- Lifting and hoisting slings
- Rigging and towing
- Marine and offshore hardware
- Chain and wire rope assemblies
- Construction and steel erection
- Recovery and off-road equipment
Certifications
ISO 9001:2015 certified. Material certificates (EN 10204 3.1/3.2). RoHS and REACH compliant.
Frequently Asked Questions
Bow shackle or dee shackle — which do I need?
Bow (omega) shackles have a wider opening that accepts multi-leg slings and side loading angles. Dee (D) shackles are narrower and best for straight-line, single-leg pulls. Every shackle is stamped with its working load limit (WLL).
What sizes are available?
Available sizes range from 5/16″ – 1-1/2″ (8mm – 38mm). Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 500 pcs (standard), 2,000 pcs (custom). Lead time is 7-15 days (standard), 20-30 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
