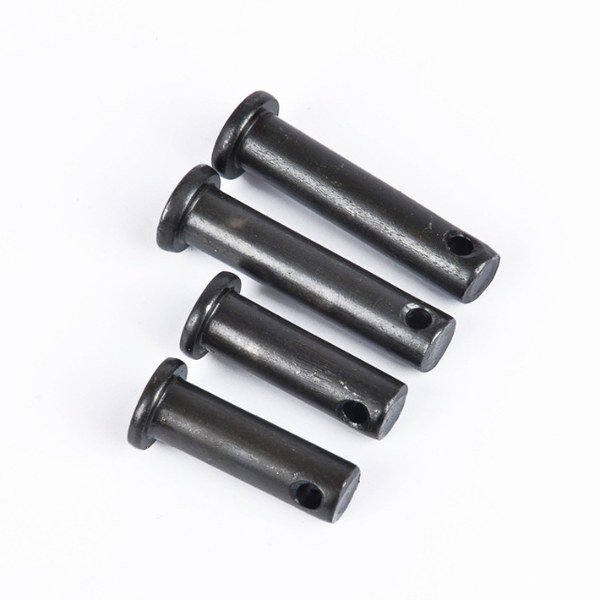

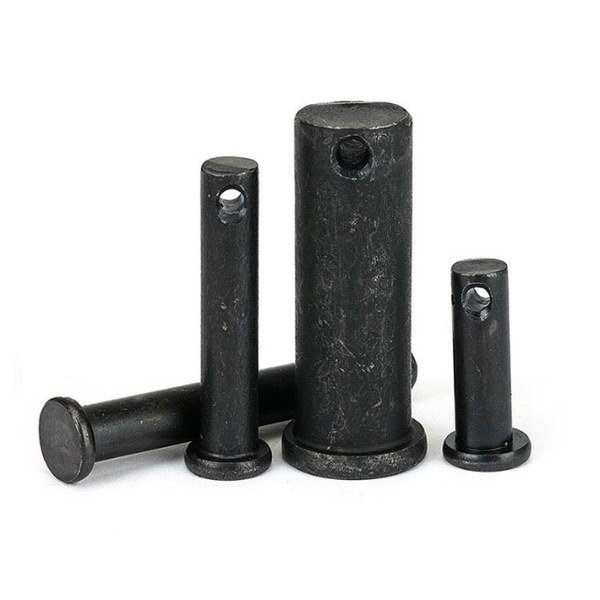

Headed Clevis Pins with Cotter Hole
Clevis pins join two components while allowing them to pivot — the classic hinge, linkage and rigging connection. The forged head stops the pin passing through the assembly and the drilled hole at the opposite end takes a cotter pin, split pin or R-clip for secure retention.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | DIN 1444 / Custom-made |
| Type | Headed Pins with Cotter Hole |
| Diameter Range | 5mm – 30mm |
| Length Range | 20mm – 200mm |
| Material | Carbon Steel, Stainless Steel SS304 / SS316 |
| Surface Finish | Black Oxide, Zinc Plated, Plain, Stainless Steel |
| Tolerance | h11 shank (other tolerances on request) |
| MOQ | 500 pcs (standard), 2,000 pcs (custom) |
| Lead Time | 7-15 days (standard), 20-30 days (custom) |
Available Sizes
5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 20mm, 25mm, 30mm
Applications
- Hinges and pivot joints
- Rigging and shackle assemblies
- Tractor and trailer linkages
- Cylinder and clevis mountings
- Conveyor and chain connections
- Agricultural machinery
Certifications
ISO 9001:2015 certified. Material certificates (EN 10204 3.1/3.2). RoHS and REACH compliant.
Frequently Asked Questions
What is a clevis pin used for?
A clevis pin forms a hinge or pivot inside a clevis (U-shaped fork). It is secured by an R-clip or cotter pin through the drilled hole — a strong, removable pivot for linkages, trailers and implements.
What sizes are available?
Available sizes range from 5mm – 30mm. Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 500 pcs (standard), 2,000 pcs (custom). Lead time is 7-15 days (standard), 20-30 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
