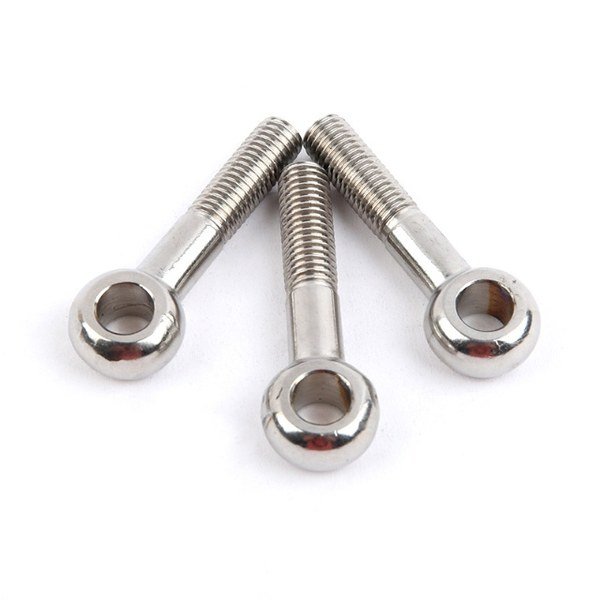

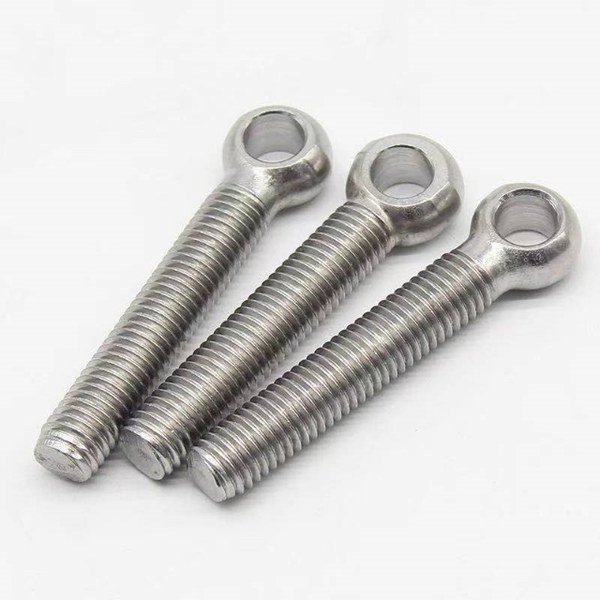

Stainless Steel Eye Bolts DIN 444 (A2 / A4)
Stainless steel DIN 444 eye bolts resist corrosion in marine, coastal and wash-down environments. The forged round eye takes a pin, shackle or hook and allows the load to align itself, making these bolts a common choice for boat hardware, shade structures and outdoor tensioning systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | DIN 444 |
| Type | Forged Round Eye, Fully Threaded |
| Size Range | M6 – M24 |
| Material | Stainless Steel SS304 (A2-70) / SS316 (A4-80) |
| Surface Finish | Stainless Steel, Passivated |
| Thread | Metric Coarse, full thread |
| MOQ | 500 pcs (standard), 2,000 pcs (custom) |
| Lead Time | 10-20 days (standard), 20-30 days (custom) |
Available Sizes
M6, M8, M10, M12, M14, M16, M20, M24
Applications
- Marine and boat hardware
- Coastal and outdoor structures
- Shade sails and awnings
- Food and pharmaceutical machinery
- Turnbuckle and rigging assemblies
- Railings and balustrade fittings
Certifications
ISO 9001:2015 certified. Material certificates (EN 10204 3.1/3.2). RoHS and REACH compliant.
Frequently Asked Questions
A2 or A4 stainless steel — which grade do I need?
A2 (304) suits general outdoor and mildly corrosive environments. A4 (316) adds molybdenum for resistance to chlorides — the right choice for marine, coastal and chemical-exposed installations.
What sizes are available?
Available sizes range from M6 – M24. Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 500 pcs (standard), 2,000 pcs (custom). Lead time is 10-20 days (standard), 20-30 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
