Lifting Eye Bolts & Eye Nuts (DIN 580 / DIN 582)

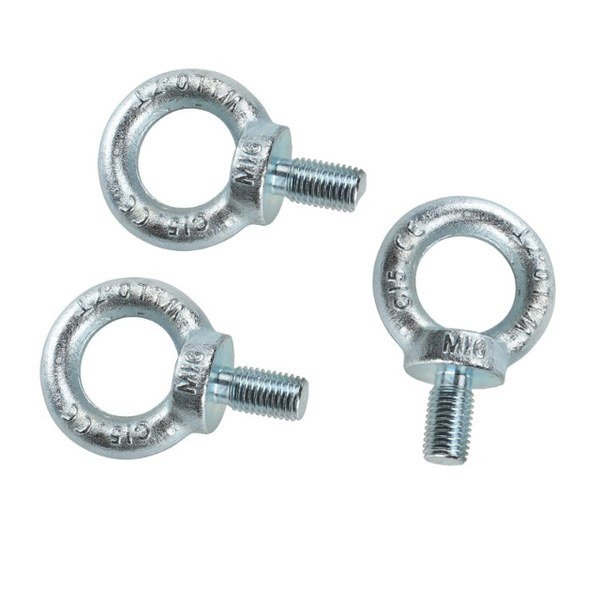

DIN 580 lifting eye bolts and DIN 582 eye nuts are engineered for overhead lifting and hoisting, where the eye must be loaded in the direction of the shank. Each piece is forged, proof-load tested and stamped with its working load limit. Use with a shackle or hook of matching capacity for a safe lifting point.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | DIN 580 (eye bolt), DIN 582 (eye nut), GB 825 / GB 825 |
| Size Range | M6 – M48 |
| Material | Carbon Steel C15 / Stainless Steel SS304 / SS316 |
| Surface Finish | Zinc Plated, Hot Dip Galvanized, Stainless Steel |
| Working Load Limit | 0.07 t – 8 t (stamped on each piece) |
| Marking | WLL, thread size, CE / manufacturer mark |
| MOQ | 500 pcs (standard), 2,000 pcs (custom) |
| Lead Time | 7-15 days (standard), 20-30 days (custom) |
Available Sizes
M6, M8, M10, M12, M16, M20, M24, M30, M36, M42, M48
Applications
- Overhead lifting and hoisting
- Lifting points on machinery and moulds
- Rigging and slinging assemblies
- Construction and steel erection
- Marine and dock hardware
- Wind and solar mounting structures
Certifications
ISO 9001:2015 certified. Material certificates (EN 10204 3.1/3.2). RoHS and REACH compliant.
Frequently Asked Questions
What is the difference between DIN 580 and DIN 582?

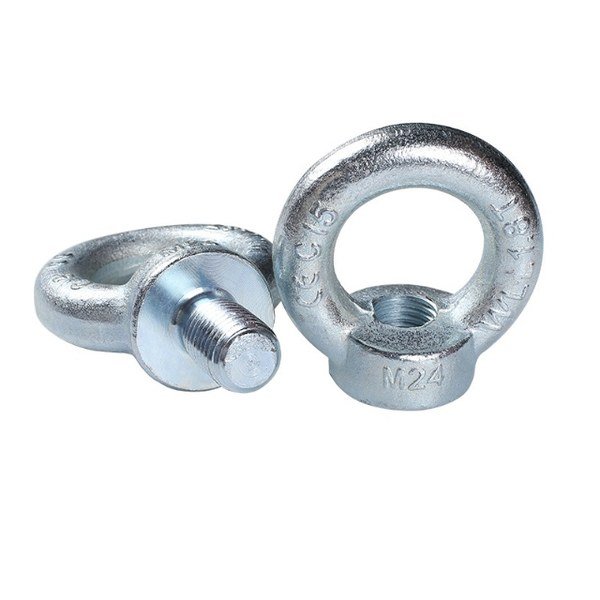

DIN 580 is a lifting eye bolt with a male thread that screws into a tapped hole. DIN 582 is the matching lifting eye nut with a female thread that mounts on a stud or threaded rod. Both are forged components for lifting and load securing.
What sizes are available?
Available sizes range from M6 – M48. Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 500 pcs (standard), 2,000 pcs (custom). Lead time is 7-15 days (standard), 20-30 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
