Tension Control Bolts (TC Bolts)

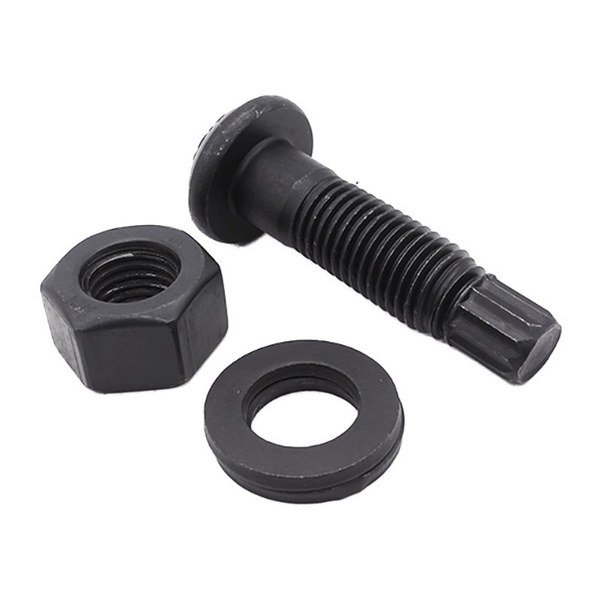

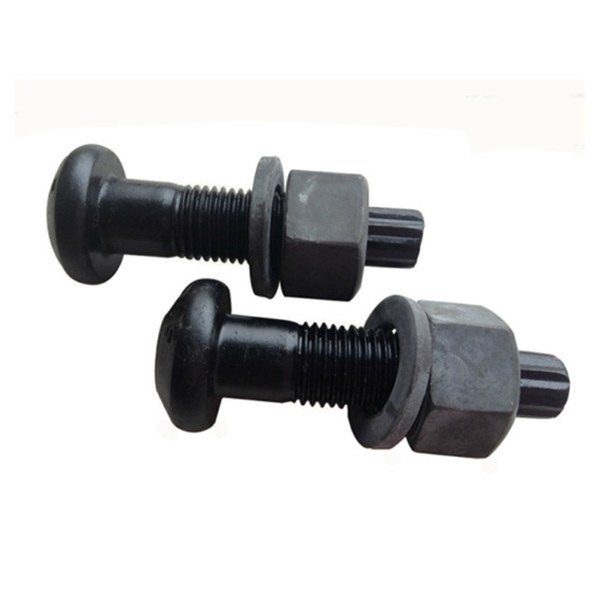

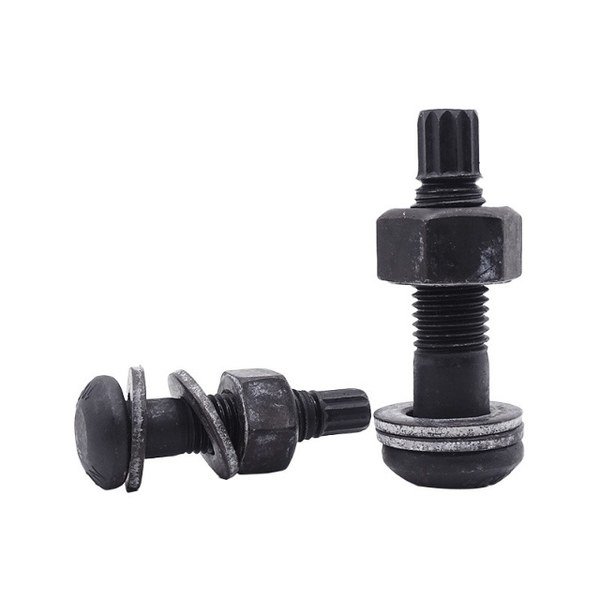

Tension control bolts — also called torque shear bolts — have a splined extension at the end that shears off at exactly the right torque. The installer simply runs the nut down with an electric TC wrench until the spline snaps, guaranteeing the correct preload every time with no torque wrench and no operator judgement. This makes them the fastest and most reliable structural bolt for high-volume steel erection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | GB/T 3632 / ASTM / EN 14399-10 |
| Type | Tension Control (Torque Shear) Bolt |
| Size Range | M16 – M24 |
| Grade | 10.9 |
| Material | Alloy Steel |
| Surface Finish | Black Oxide, Hot Dip Galvanized, Dacromet |
| Supplied With | Matching nut (10H) + hardened washer |
| Installation | Electric TC bolt wrench, spline shears off at set torque |
| MOQ | 500 pcs (standard), 2,000 pcs (custom) |
| Lead Time | 7-15 days (standard), 20-30 days (custom) |
| Packaging | Bulk cartons / Wooden pallets / Custom labeling |

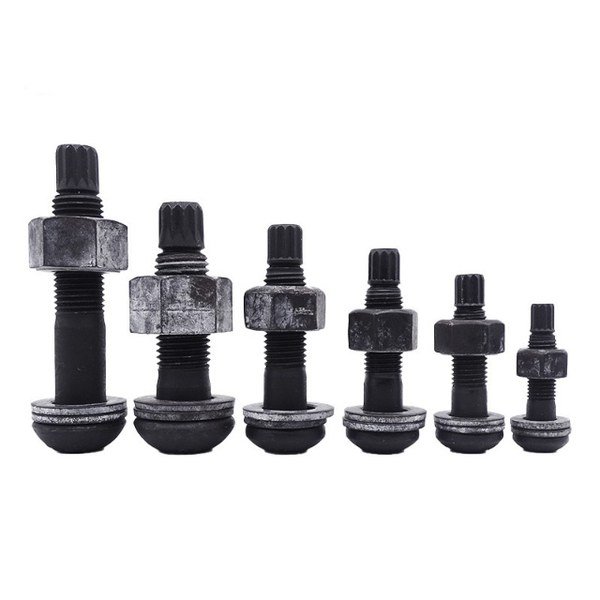

Available Sizes
M16, M20, M22, M24 with lengths 45mm – 150mm
Applications
- Steel structure erection
- Bridges and heavy steel frames
- Industrial buildings and warehouses
- Stadiums and exhibition halls
- Tower and mast structures
- Plant and equipment frames
Certifications
ISO 9001:2015 certified. Material certificates (EN 10204 3.1/3.2). RoHS and REACH compliant.
Frequently Asked Questions
What is a tension control (TC) bolt?
A TC bolt has a splined end that twists off when the designed pretension is reached, installed with a single electric torque wrench from one side. The break-off gives built-in proof of correct tension — fast and inspectable for structural steel work.
What sizes are available?
Available sizes range from M16 – M24. Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 500 pcs (standard), 2,000 pcs (custom). Lead time is 7-15 days (standard), 20-30 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
