Turnbuckles (Hook & Eye, DIN 1480)

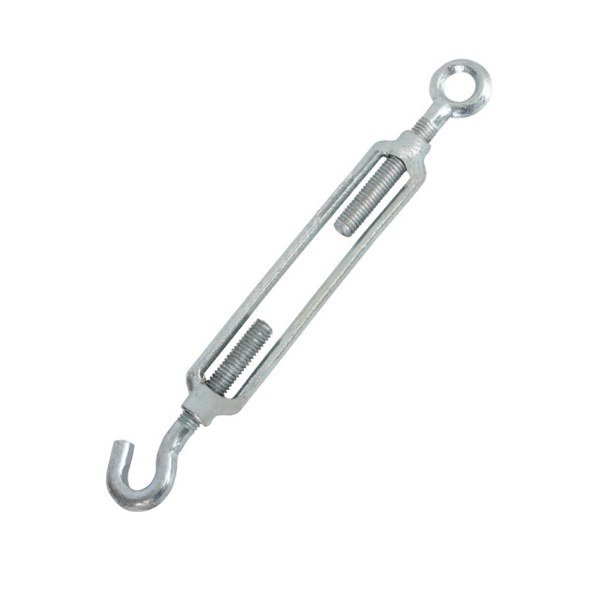

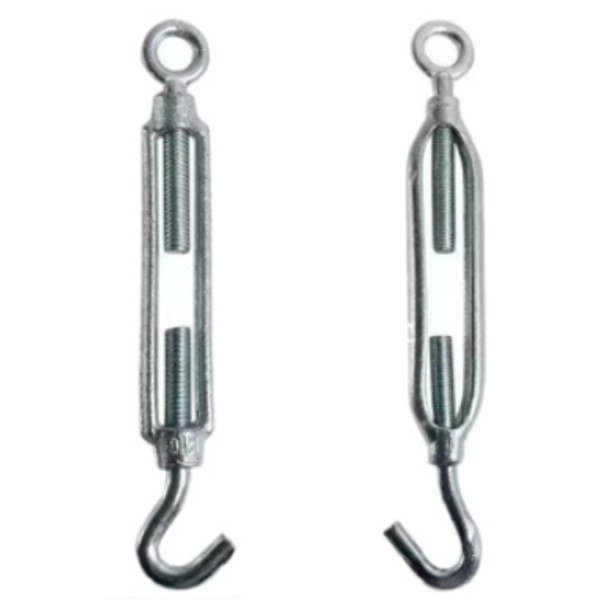

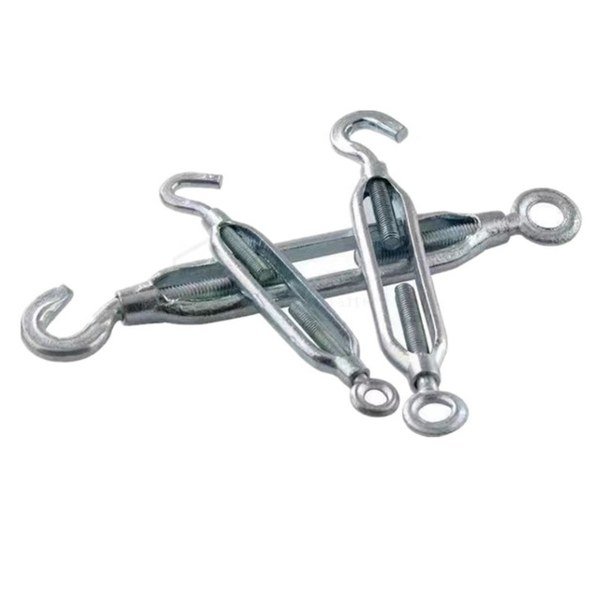

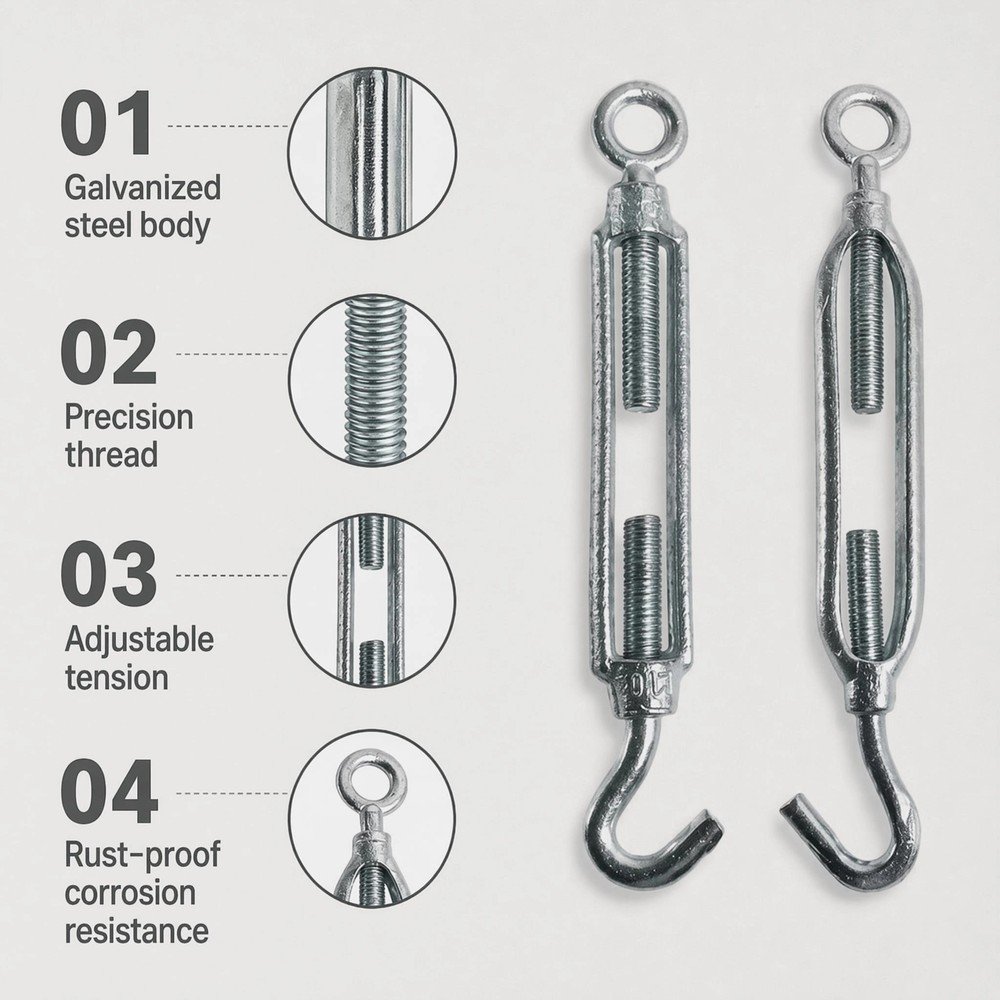

Turnbuckles — also called rigging screws — are tensioning devices used to adjust the length and tension of wire rope, cables, tie rods and guy wires. The forged hook end hooks onto an anchor point while the eye end takes a pin or bolt, giving a fast, adjustable connection for applications where permanent welding is not practical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | DIN 1480 / US Commercial Type |
| Body Type | Hook & Eye / Eye & Eye / Jaw & Jaw (available on request) |
| Size Range | M6 – M24 (1/4″ – 1″) |
| Material | Carbon Steel (C15 / Q235), Stainless Steel SS304 / SS316 |
| Surface Finish | Zinc Plated, Hot Dip Galvanized, Plain, Stainless Steel |
| End Fittings | Forged hook / forged eye |
| MOQ | 500 pcs (standard), 2,000 pcs (custom) |
| Lead Time | 7-15 days (standard), 20-30 days (custom) |
| Packaging | Bulk cartons / Wooden pallets / Custom labeling |
Available Sizes
M6, M8, M10, M12, M14, M16, M20, M24
Applications
- Wire rope and cable tensioning
- Guy wires and stay wires
- Fencing and vineyard trellis systems
- Structural bracing and tie rods
- Marine rigging and shade sail hardware
- Solar mounting and greenhouse framing
Certifications
ISO 9001:2015 certified. Material certificates (EN 10204 3.1/3.2). RoHS and REACH compliant.
Frequently Asked Questions
How does a turnbuckle work?
A turnbuckle body has opposite left-hand and right-hand threads at each end. Rotating the body screws both end fittings in (or out) at the same time, taking up slack or adding tension without rotating the attached wires or rods.
What sizes are available?
Available sizes range from M6 – M24 (1/4″ – 1″). Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 500 pcs (standard), 2,000 pcs (custom). Lead time is 7-15 days (standard), 20-30 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
