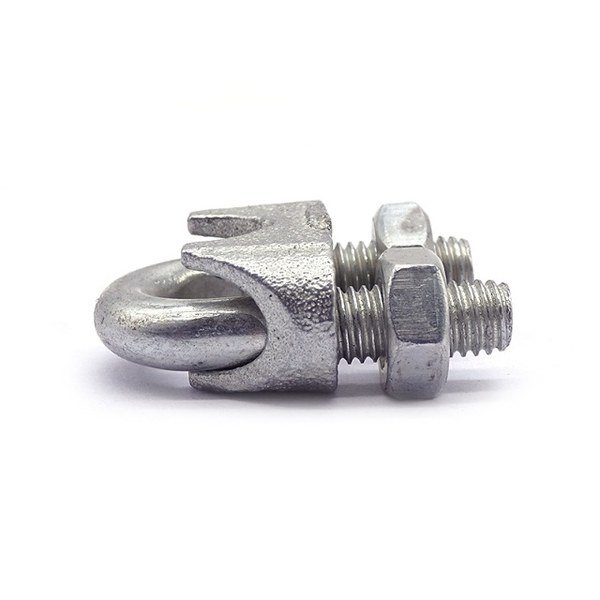

Wire Rope Clips (DIN 741)

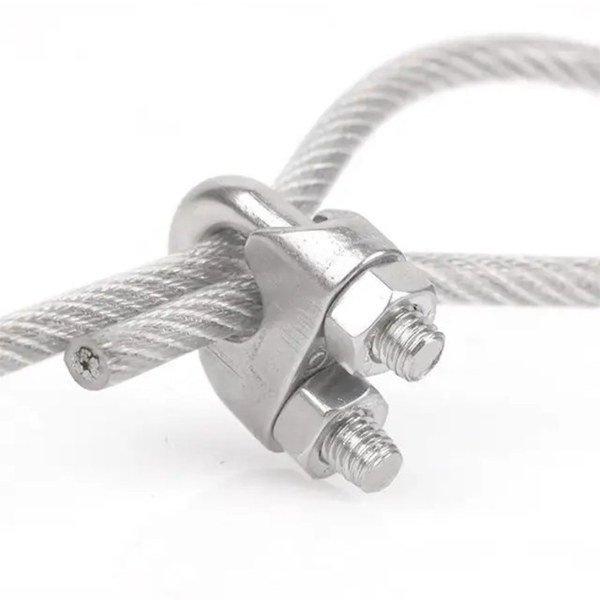

Wire rope clips — also called U-bolt clips or fist grips — clamp two parts of a wire rope together to form an eye, loop or termination. They are the fastest way to make a field repair or a temporary eye without splicing, and are widely used on guy wires, lifting slings and guard rail systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | DIN 741 / US Type |
| Rope Diameter | 3mm – 40mm (1/8" – 1-1/2") |
| Type | U-Bolt Type (Malleable / Forged) |
| Material | Carbon Steel, Stainless Steel SS304 / SS316 |
| Surface Finish | Electro Galvanized, Hot Dip Galvanized, Stainless Steel |
| Supplied With | U-bolt, saddle, two nuts (torque to DIN 741 values) |
| MOQ | 500 pcs (standard), 2,000 pcs (custom) |
| Lead Time | 7-15 days (standard), 20-30 days (custom) |
Available Sizes
3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 20mm, 22mm, 25mm, 28mm, 32mm, 40mm
Applications
- Wire rope eye and loop termination
- Guy wire and stay wire clamping
- Lifting slings and rigging assemblies
- Fencing and guard rail systems
- Marine and mooring lines
- Cable tray and pipe support
Certifications
ISO 9001:2015 certified. Material certificates (EN 10204 3.1/3.2). RoHS and REACH compliant.
Frequently Asked Questions
How many wire rope clips does a termination need?
As a general rule, a wire rope eye termination requires at least three clips, with more for larger diameters — spacing them approximately 6-7 rope diameters apart, saddles on the live end (“never saddle a dead horse”). Follow the standard or your engineer’s instruction for your rope size.
What is the MOQ and lead time?
The MOQ is 500 pcs (standard), 2,000 pcs (custom). Lead time is 7-15 days (standard), 20-30 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
