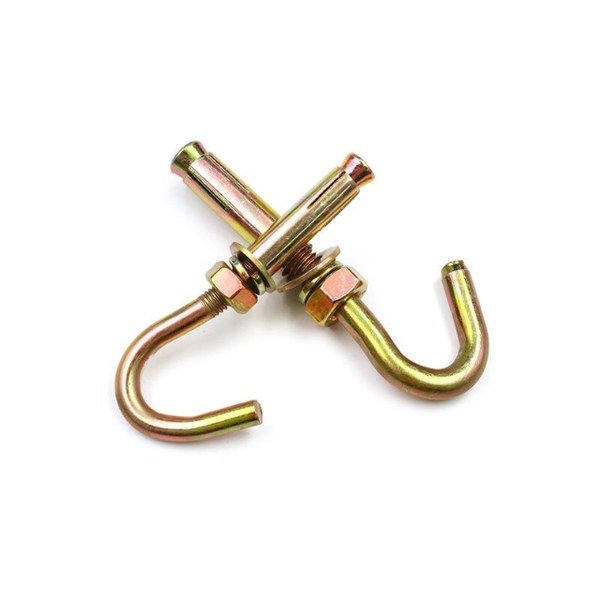

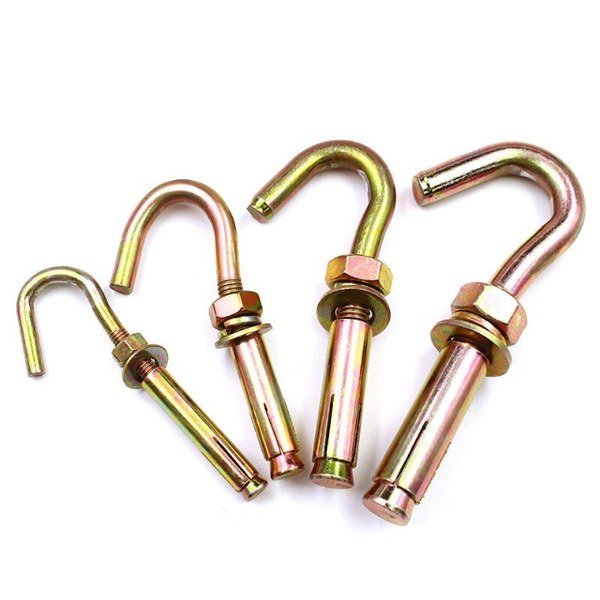

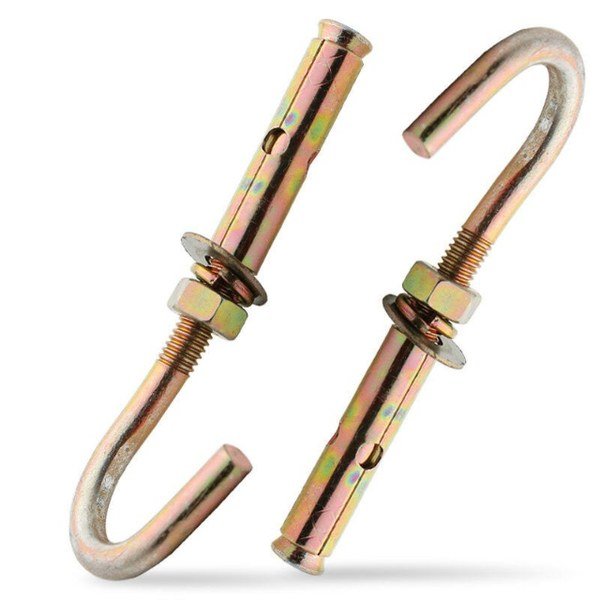

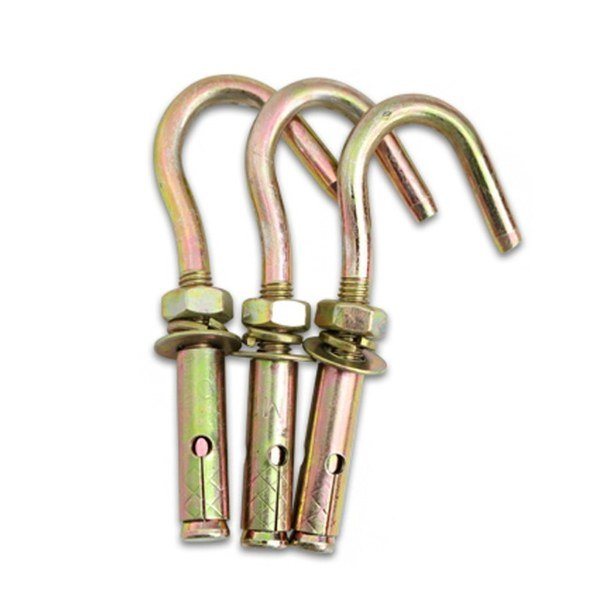

Ceiling Anchors (Hook Type)
Hook type ceiling anchors combine a sleeve expansion anchor with a formed hook head, giving a ready-made suspension point in concrete ceilings and soffits. The hook takes a wire, chain, rod or hanger so services can be suspended without drilling a separate eye. The open hook allows fast on-site hooking with no threading.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | DIN / GB (tested) |
| Type | Sleeve expansion anchor with hook head |
| Hook Type | Open hook / J hook |
| Size Range | M6 – M12 |
| Material | Carbon Steel |
| Surface Finish | Zinc Plated (Clear / Yellow), Hot Dip Galvanized |
| Base Material | Solid concrete, solid brick |
| Supplied With | Expansion sleeve, hex nut |
| MOQ | 500 pcs (standard), 2,000 pcs (custom) |
| Lead Time | 7-15 days (standard), 20-30 days (custom) |
| Packaging | Bulk cartons / Wooden pallets / Custom labeling |
Available Sizes
M6, M8, M10, M12 with hook lengths 40mm – 80mm
Applications
- Suspended ceilings and cable trays
- HVAC ducting and pipework supports
- Sprinkler and fire fighting pipework
- Lighting and signage suspension
- Electrical conduit and cable runs
- Chilled water and drainage pipework
Certifications
ISO 9001:2015 certified. Material certificates (EN 10204 3.1/3.2). RoHS and REACH compliant.
Frequently Asked Questions
How do hook-type ceiling anchors work?
The anchor is set into the ceiling base material and its internal expansion mechanism locks it in place, leaving a projecting hook for hanging. This avoids drilling and threading a separate hook bolt — one product, one installation step.
What sizes are available?
Available sizes range from M6 – M12. Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 500 pcs (standard), 2,000 pcs (custom). Lead time is 7-15 days (standard), 20-30 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
