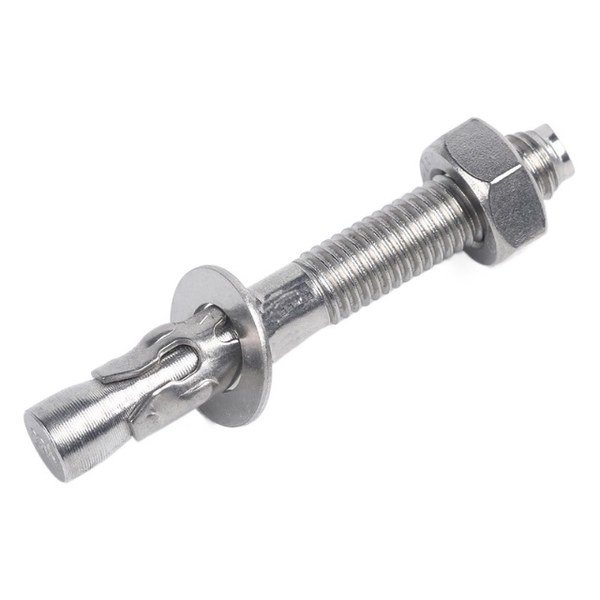

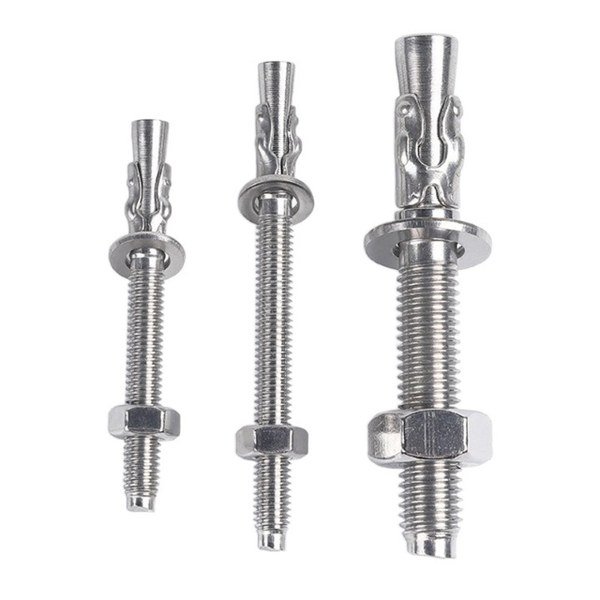

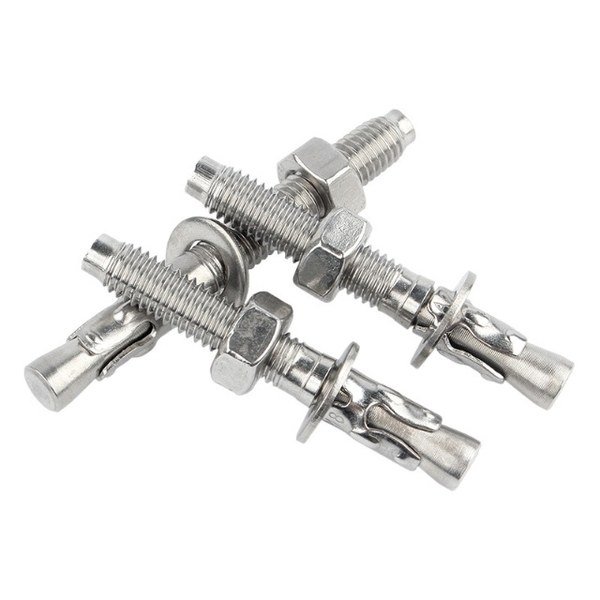

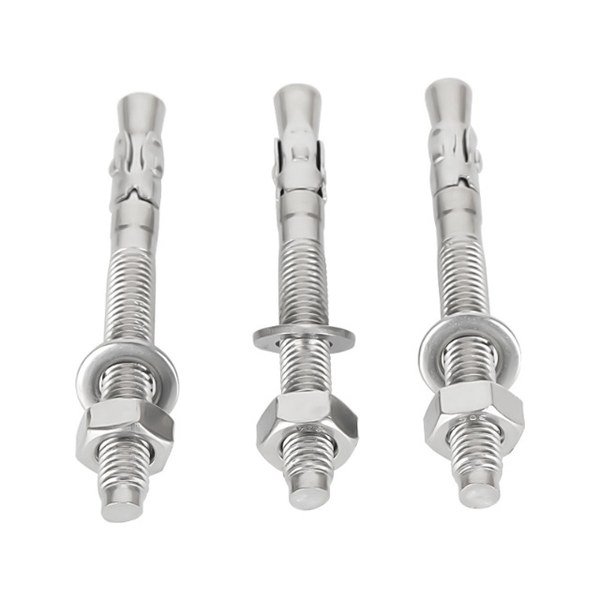

Stainless Steel Wedge Anchors (A2 / A4)
Stainless steel wedge anchors use the same torque-controlled expansion mechanism as carbon steel anchors, but in SS304 (A2) or SS316 (A4) for corrosion resistance. They are specified for coastal installations, swimming pools, food processing plants, tunnels and anywhere the anchor will be permanently exposed to moisture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | ETA / GB / ASTM (tested) |
| Type | Torque-controlled expansion, through fixing |
| Size Range | M6 – M24 |
| Material | Stainless Steel SS304 (A2-70) / SS316 (A4-80) |
| Surface Finish | Stainless Steel, Passivated |
| Base Material | Cracked and non-cracked concrete ≥ C20/25 |
| Supplied With | Hex nut, washer, expansion clip |
| MOQ | 500 pcs (standard), 2,000 pcs (custom) |
| Lead Time | 7-15 days (standard), 20-30 days (custom) |
| Packaging | Bulk cartons / Wooden pallets / Custom labeling |
Available Sizes
M6, M8, M10, M12, M14, M16, M20, M24 with lengths 60mm – 260mm
Applications
- Coastal and marine structures
- Swimming pool and water park equipment
- Food and beverage processing plants
- Tunnels and underground works
- Waste water treatment plants
- Outdoor signage and lighting poles
Certifications
ISO 9001:2015 certified. Material certificates (EN 10204 3.1/3.2). RoHS and REACH compliant.
Frequently Asked Questions
When should I use stainless steel wedge anchors?
In wet, coastal, pool, food-processing or chemical environments where carbon steel (even galvanized) would corrode. A4/316 versions suit the harshest chloride exposure.
What sizes are available?
Available sizes range from M6 – M24. Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 500 pcs (standard), 2,000 pcs (custom). Lead time is 7-15 days (standard), 20-30 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
