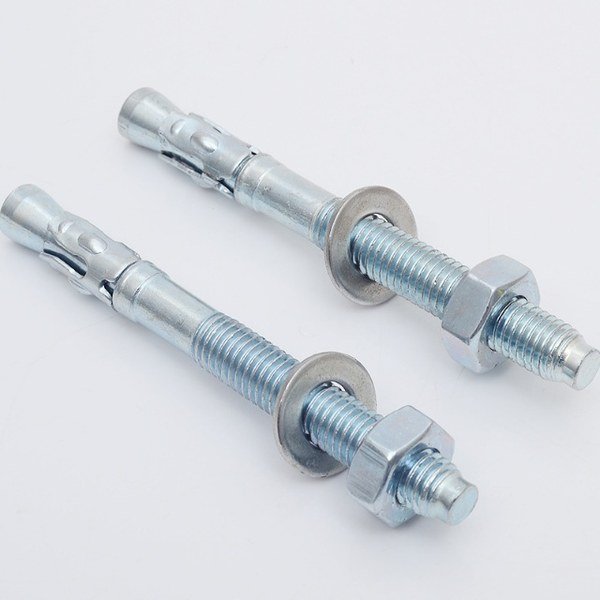

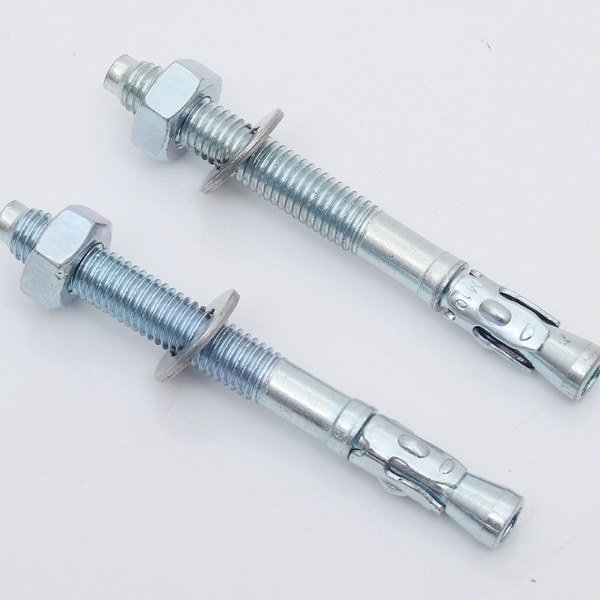

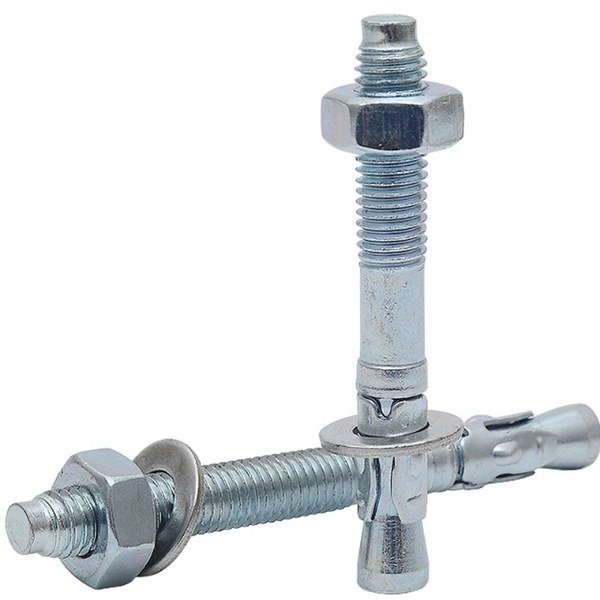

Wedge Anchors (Carbon Steel, Zinc Plated)
Wedge anchors — also called through bolts or stud anchors — expand at the bottom of the hole when the nut is tightened, clamping the fixture and the base material together. They are the workhorse of structural fixing: one hole, one anchor, immediate load capacity, with no need to wait for curing. Suited to cracked and non-cracked concrete above C20/25.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | ETA / GB / ASTM (tested) |
| Type | Torque-controlled expansion, through fixing |
| Size Range | M6 – M24 |
| Material | Carbon Steel |
| Surface Finish | Zinc Plated (Clear / Yellow) |
| Base Material | Cracked and non-cracked concrete ≥ C20/25 |

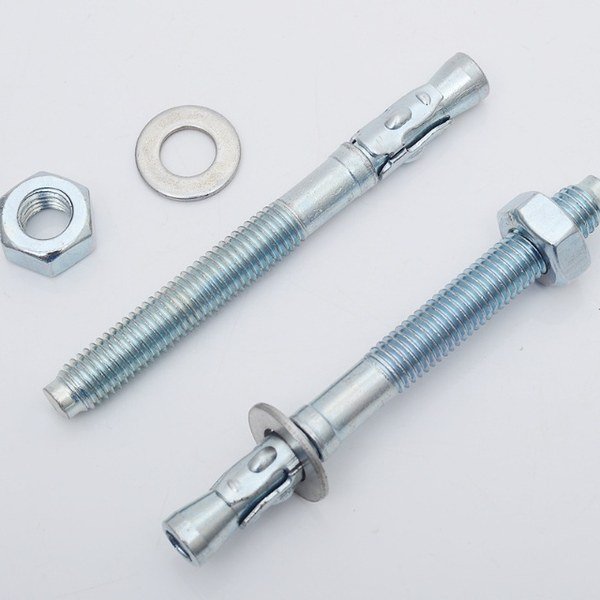

| Supplied With | Hex nut, washer, expansion clip |
| Anchor Depth | 50mm – 170mm (depending on size) |
| MOQ | 500 pcs (standard), 2,000 pcs (custom) |
| Lead Time | 7-15 days (standard), 20-30 days (custom) |
| Packaging | Bulk cartons / Wooden pallets / Custom labeling |
Available Sizes
M6, M8, M10, M12, M14, M16, M20, M24 with lengths 60mm – 260mm
Applications
- Steel structures and column base plates
- Racking and warehouse systems
- Facade and curtain wall brackets
- Pipe supports and cable tray
- Machine and pump anchoring
- Guardrail and barrier fixing
Certifications
ISO 9001:2015 certified. Material certificates (EN 10204 3.1/3.2). RoHS and REACH compliant.
Frequently Asked Questions
How does a wedge anchor work?
Drill the hole, clean it, insert the anchor through the fixture and tighten the nut. The cone at the anchor end wedges the expansion clip against the hole wall, clamping fixture and concrete together with immediate load capacity.
What sizes are available?
Available sizes range from M6 – M24. Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 500 pcs (standard), 2,000 pcs (custom). Lead time is 7-15 days (standard), 20-30 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
