Hook & Ring Expansion Anchor Bolts

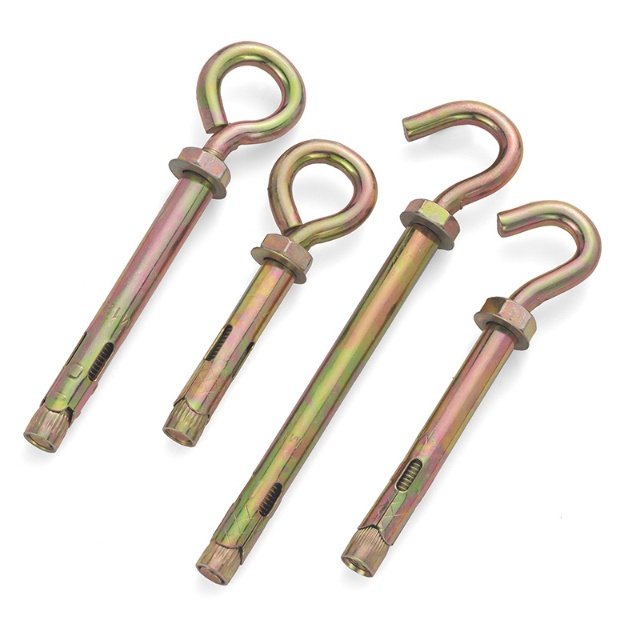

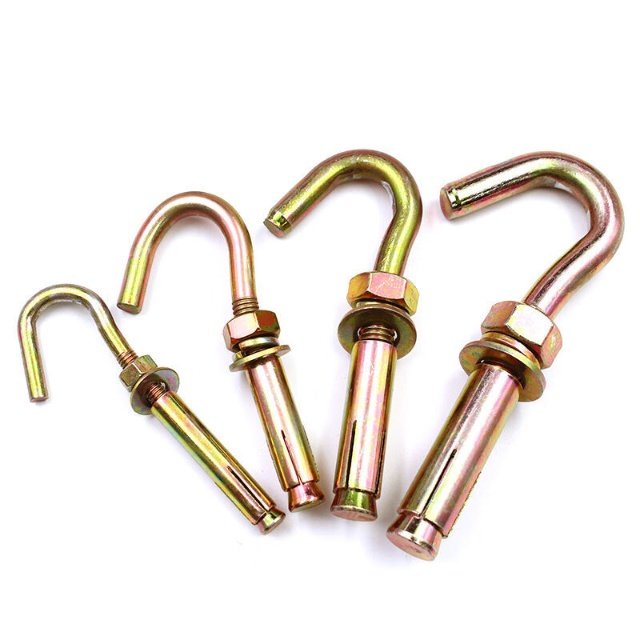

Hook and ring (eye) expansion anchor bolts for suspending and fastening loads in concrete, brick and solid masonry. Each anchor combines a high-strength carbon steel hook or ring with a ribbed expansion sleeve — insert into a drilled hole, tighten, and the sleeve expands to lock firmly in place. Ideal for hanging pipes, cable trays, lighting, signs, machinery and suspended equipment in both industrial construction and light-duty DIY projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Anchor Type | Hook Expansion Anchor / Ring (Eye) Expansion Anchor |
| Thread Size | M5, M6, M8, M10, M12, M16 |
| Overall Length | 40 mm – 200 mm (depending on size) |
| Sleeve Material | Carbon Steel (cold-formed, seamless) |
| Hook / Ring Material | High-Strength Carbon Steel, forged & welded options |
| Surface Finish | Zinc Plated (5-25 μm), Hot Dip Galvanized, Stainless Steel 304/316 on request |
| Base Material | Concrete (C20/25+), solid brick, natural stone |
| Working Load | 0.3 – 12 kN (depending on size & base material) |
| Installation | Drill → clean hole → insert anchor → tighten screw to expand |
| MOQ | 5,000 pcs (standard), negotiable for mixed sizes |
| Lead Time | 7-15 days (standard), 20-30 days (custom) |
| Packaging | Bulk cartons / Wooden pallets / Custom labeling available |
Available Sizes
M5, M6, M8, M10, M12, M16 — straight hook, L-hook, U-hook and ring (eye) configurations. Custom lengths and special bends manufactured to your drawings.
Applications
- Suspended piping and HVAC supports
- Cable trays and electrical installations
- Lighting fixtures and signage
- Hammocks, swings and gym equipment
- Fire-sprinkler and sprinkler-pipe hanging systems
- Decorative and general-purpose suspension
Certifications
ISO 9001:2015 certified manufacturing. Material test certificates (MTC) per EN 10204 3.1/3.2 available. RoHS and REACH compliant.
Frequently Asked Questions
What base materials can hook and ring expansion anchors be used in?
They are rated for concrete (C20/25 and above), solid brick and natural stone. They are not suitable for hollow or soft base materials without special consideration — ask us for advice on your substrate.
What sizes are available?
Available sizes range from M5, M6, M8, M10, M12, M16. Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 5,000 pcs (standard), negotiable for mixed sizes. Lead time is 7-15 days (standard), 20-30 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
