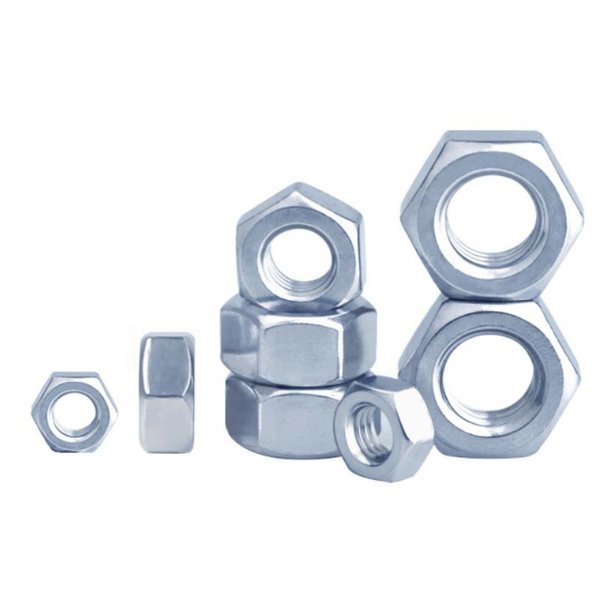

Hex Nuts (DIN 934 / ISO 4032)
Hexagonal nuts manufactured to DIN 934 and ISO 4032 standards. One of the most widely used fastener types, suitable for general purpose bolting applications across all industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | DIN 934, ISO 4032 |
| Nut Type | Hexagonal, Full Height |
| Thread | Metric Coarse (Right Hand) |
| Size Range | M3 – M56 |
| Material | Carbon Steel (Grade 4, 6, 8, 10, 12) |
| Stainless Steel | SS304 (A2-70), SS316 (A4-80) |
| Surface Finish | Self-Color, Zinc Plated (Clear/Black/Color), Hot-Dip Galvanized, Dacromet |
| Proof Load | 600-1200 MPa (Grade 8-12) |
| Hardness | HV 150-302 (depending on grade) |
| Width Across Flats | 5.5mm – 85mm (standard sizes) |
| Height | 2.4mm – 45mm (standard sizes) |
| MOQ | 5,000 pcs (M3-M12), 1,000 pcs (M14+) |
| Lead Time | 5-12 days (standard), 15-25 days (custom) |
| Packaging | Bulk in cartons / Plastic bags / Custom labeling |
Available Grades
- Grade 4: Low carbon steel, general purpose
- Grade 6: Medium carbon steel, general engineering
- Grade 8: Medium carbon steel Q&T, heavy duty
- Grade 10: Alloy steel Q&T, high strength
- Grade 12: Alloy steel Q&T, maximum strength
Available Sizes
M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M42, M48, M56
Applications
- General machinery assembly
- Automotive and transportation
- Construction and infrastructure
- Furniture manufacturing
- Electrical equipment
- Flange connections
Certifications
ISO 9001:2015 certified. Material test certificates (EN 10204 3.1) available on request. RoHS and REACH compliant.
Frequently Asked Questions
What do nut property grades 8 and 10 mean?
The grade number indicates the nut’s proof load capability matched to the corresponding bolt grade: a Grade 8 nut pairs with 8.8 bolts, and Grade 10 with 10.9 bolts. Always match the nut grade to (or above) the bolt grade to achieve the full joint strength.
What sizes are available?
Available sizes range from M3 – M56. Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 5,000 pcs (M3-M12), 1,000 pcs (M14+). Lead time is 5-12 days (standard), 15-25 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
