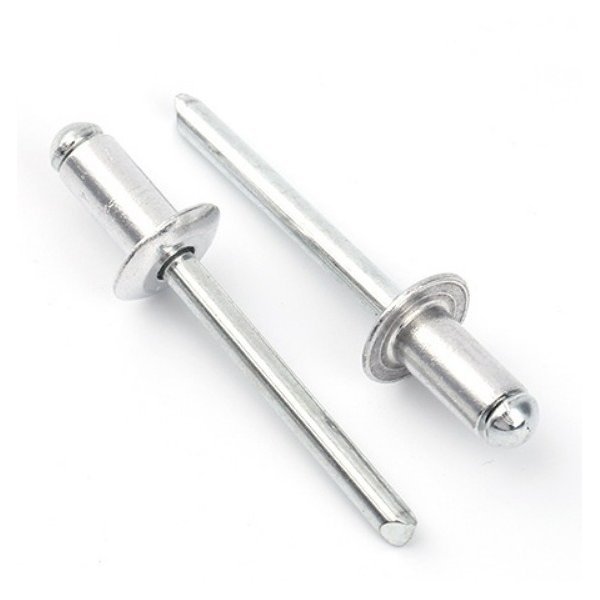

Blind Rivets (DIN 7337 / ISO 15983)
Pop blind rivets manufactured to DIN 7337 and ISO 15983 standards. Designed for single-side access installation where the back side of the workpiece is not accessible. Widely used in automotive, electronics, and construction industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | DIN 7337, ISO 15983 |
| Rivet Type | Blind / Pop Rivet (Open End) |
| Dome Head | Standard dome head |
| Diameter Range | 3.2mm – 6.4mm |
| Length Range | 6mm – 40mm |
| Grip Range | 1mm – 30mm (depending on length) |
| Body Material | Aluminum (AlMg5), Steel, Stainless Steel 304/316, Copper, Monel |
| Mandrel Material | Steel, Stainless Steel, Aluminum |
| Tensile Strength | 500-2000 N (depending on size and material) |
| Shear Strength | 400-1500 N (depending on size and material) |
| Temperature Range | -40°C to +150°C (standard), up to +500°C (steel/stainless) |
| MOQ | 10,000 pcs (standard), 50,000 pcs (small sizes) |
| Lead Time | 5-10 days (standard), 15-20 days (custom) |
| Packaging | Bulk in cartons / Plastic boxes / Custom labeling |
Available Head Types
- Dome Head: Standard, most common
- Countersunk (Flat): For flush surface finish
- Large Flange: Wider bearing surface for soft materials
- Sealed (Closed End): Waterproof, prevents mandrel from falling out
Available Sizes
3.2×6, 3.2×8, 3.2×10, 3.2×12, 3.2×14, 4.0×6, 4.0×8, 4.0×10, 4.0×12, 4.0×14, 4.8×8, 4.8×10, 4.8×12, 4.8×14, 4.8×16, 4.8×20, 5.0×10, 5.0×12, 5.0×15, 6.4×12, 6.4×16, 6.4×20, 6.4×25, 6.4×30
Applications
- Automotive body and trim assembly
- Electronics and appliance manufacturing
- HVAC ductwork
- Aluminum profile connections
- Sign and display mounting
- Sheet metal fabrication
- Plastic and composite bonding
Certifications
ISO 9001:2015 certified. RoHS and REACH compliant. Material test certificates available on request.
Frequently Asked Questions
How do I choose the right rivet length and grip range?
The grip range is the total thickness of material the rivet will clamp. Add up the stack thickness and select a rivet whose grip range covers it — if the rivet is too short it cannot expand properly; too long and the tail may fold unevenly. We can help you select sizes from your panel thickness.
What sizes are available?
Available sizes range from 3.2mm – 6.4mm. Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 10,000 pcs (standard), 50,000 pcs (small sizes). Lead time is 5-10 days (standard), 15-20 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
