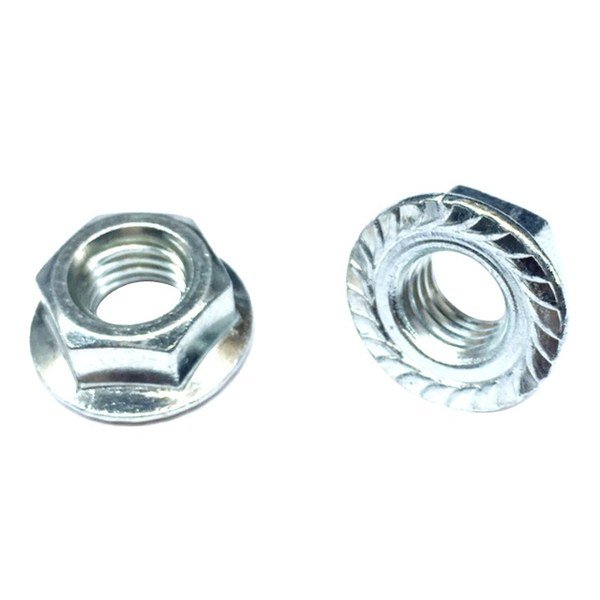

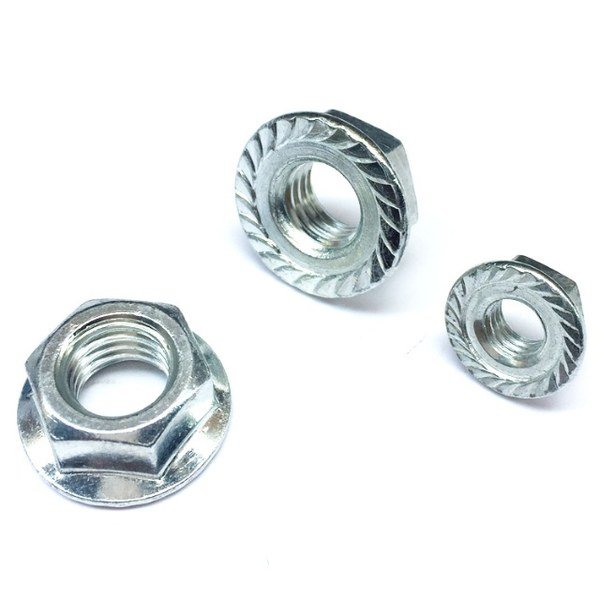

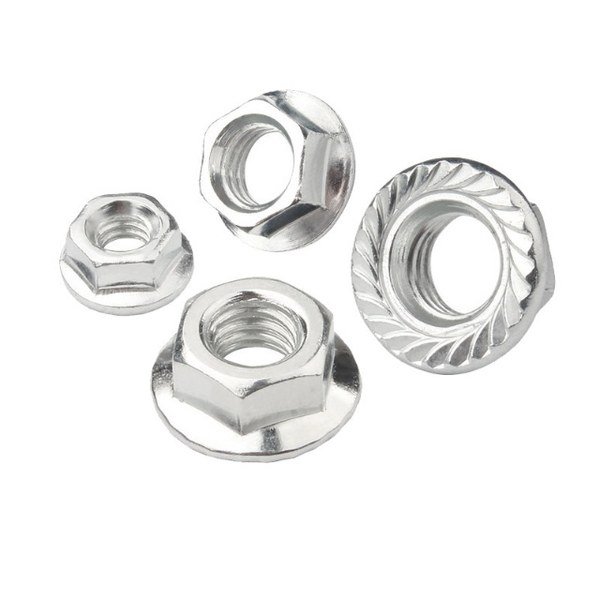

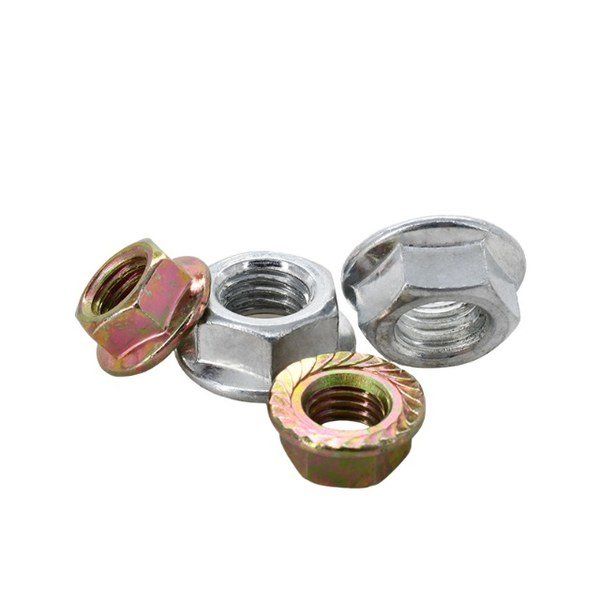

Hex Flange Nuts (Serrated)
Hex flange nuts have an integrated flange that spreads the clamping load over a wider area, so no separate washer is needed. The serrated (toothed) version has teeth on the bearing face that bite into the mating surface and resist loosening under vibration — a simple, reliable alternative to a nylon insert lock nut where a low profile is required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | DIN 6923 / IFI 145 / JIS B 1190 |
| Type | Hex Flange Nut, Serrated (toothed) bearing face |
| Size Range | M5 – M20 |
| Material | Carbon Steel, Stainless Steel SS304 / SS316 |
| Surface Finish | Zinc Plated, Hot Dip Galvanized, Stainless Steel, Black Oxide |
| Grade | Class 8 / Class 10 / A2-70 / A4-80 |
| Bearing Face | Serrated teeth / plain flange (both available) |
| MOQ | 500 pcs (standard), 2,000 pcs (custom) |
| Lead Time | 7-15 days (standard), 20-30 days (custom) |
| Packaging | Bulk cartons / Wooden pallets / Custom labeling |
Available Sizes
M5, M6, M8, M10, M12, M14, M16, M18, M20
Applications
- Automotive and vehicle assembly
- Machinery and equipment frames
- Vibration-prone assemblies
- Sheet metal and panel fixing
- Electrical cabinets and enclosures
- Furniture and shelving hardware
Certifications
ISO 9001:2015 certified. Material certificates (EN 10204 3.1/3.2). RoHS and REACH compliant.
Frequently Asked Questions
How do serrated flange nuts resist loosening?
The serrations on the flange underside bite into the mating surface when tightened, dramatically increasing resistance to rotation under vibration — while the flange itself spreads the load like a built-in washer.
What sizes are available?
Available sizes range from M5 – M20. Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 500 pcs (standard), 2,000 pcs (custom). Lead time is 7-15 days (standard), 20-30 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
