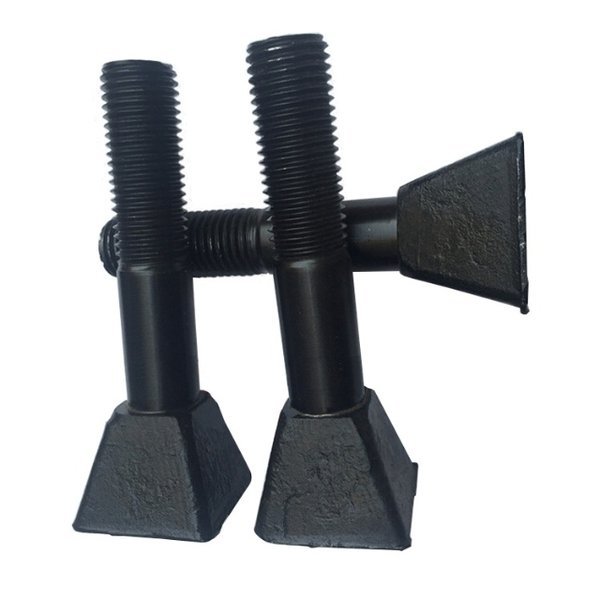

T-Head Bolts (T-Slot Bolts DIN 261)
T-head bolts with a distinctive T-shaped head designed to slide into T-slots of machine tables, structural channels, and extrusion profiles. Conforming to DIN 261 standard, these bolts provide secure clamping and positioning in jigs, fixtures, machine tools, and structural steel connections. The T-head design allows fast assembly and repositioning without requiring access to the nut side.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | DIN 261, DIN 787 |
| Thread Type | Metric Coarse |
| Size Range | M8 – M48 |
| Length Range | 25mm – 400mm |
| Material | Carbon Steel (Grade 4.8, 8.8, 10.9) |
| Stainless Steel | SS304 (A2-70), SS316 (A4-80) |
| Surface Finish | Zinc Plated, Hot Dip Galvanized, Black Oxide, Plain |
| Head Type | T-Shaped (T-Head / Hammer Head) |
| MOQ | 500 pcs (standard), 2,000 pcs (custom) |
| Lead Time | 7-15 days (standard), 20-30 days (custom) |
| Packaging | Bulk cartons / Wooden pallets / Custom labeling |
Available Sizes
M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M42, M48
Applications
- Machine tool tables and T-slot clamping
- Jigs, fixtures and workholding systems
- Structural steel channel connections
- Aluminum extrusion profiles
- Modular framing systems
- Precast concrete formwork
- Mining and quarry equipment
Certifications
ISO 9001:2015 certified manufacturing. Material test certificates (EN 10204 3.1/3.2). RoHS and REACH compliant.
Frequently Asked Questions
How do T-head bolts work?
The T-shaped head drops into the T-slot of a machine bed or extrusion and is rotated to engage, letting you position the bolt anywhere along the slot before tightening — ideal for adjustable jigs, fixtures and machine tables.
What sizes are available?
Available sizes range from M8 – M48. Contact us with your required sizes and quantities for a quick quote.
What is the MOQ and lead time?
The MOQ is 500 pcs (standard), 2,000 pcs (custom). Lead time is 7-15 days (standard), 20-30 days (custom). Mixed-size containers and larger orders are negotiable — send us your requirement for a quick quote.
Do you provide material certificates?
Yes. Material test certificates per EN 10204 3.1 are available on request, and our manufacturing is ISO 9001:2015 certified. RoHS and REACH compliance documentation can also be provided.
